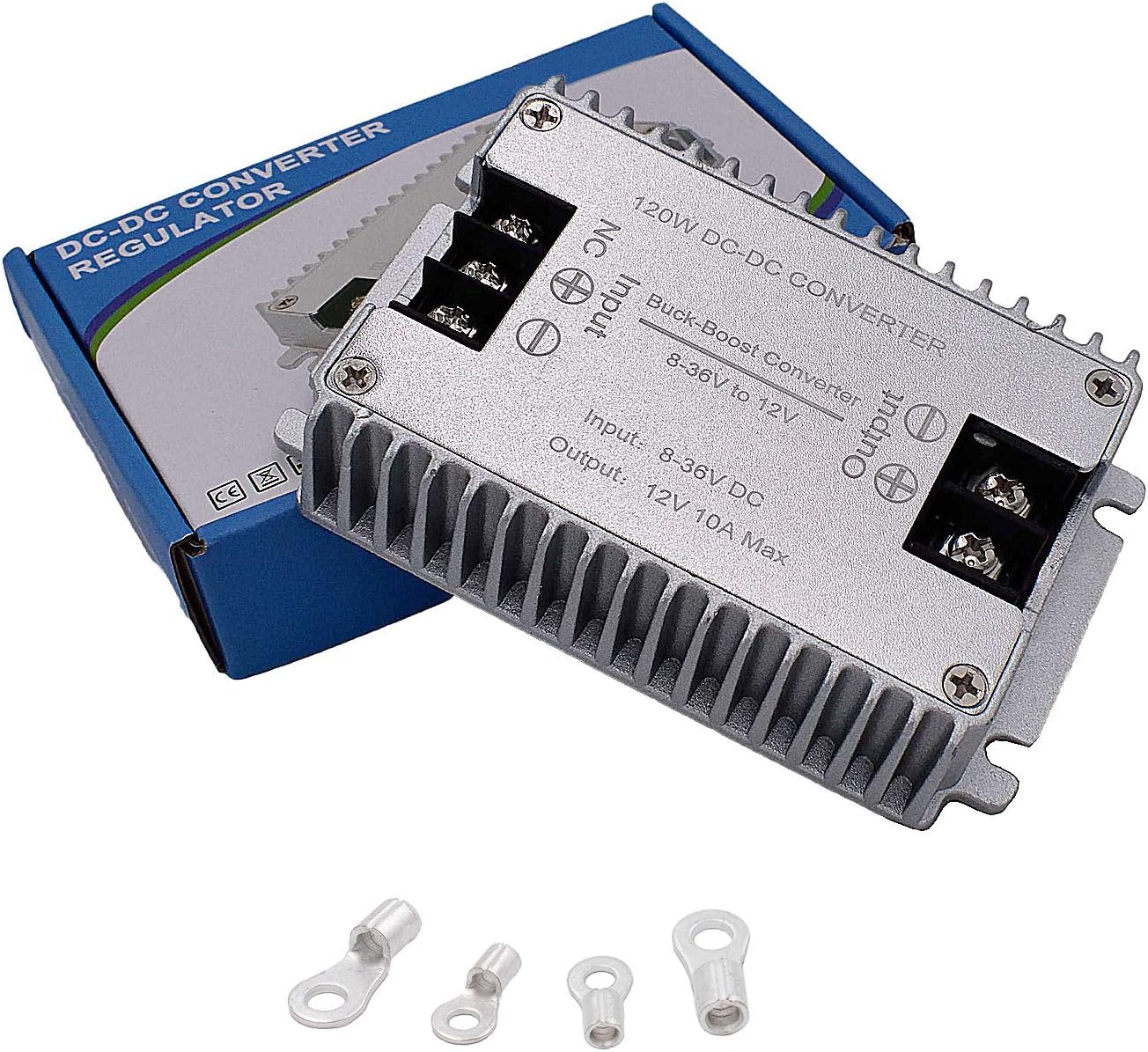

DC to DC High Efficiency Voltage Converter 8-36V to 12V 10A 120W Buck-Boost Converter DIY Power Supply Step-Down/Up Transformer
Product details
| Management number | 225476382 | Release Date | 2026/05/09 | List Price | US$12.00 | Model Number | 225476382 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

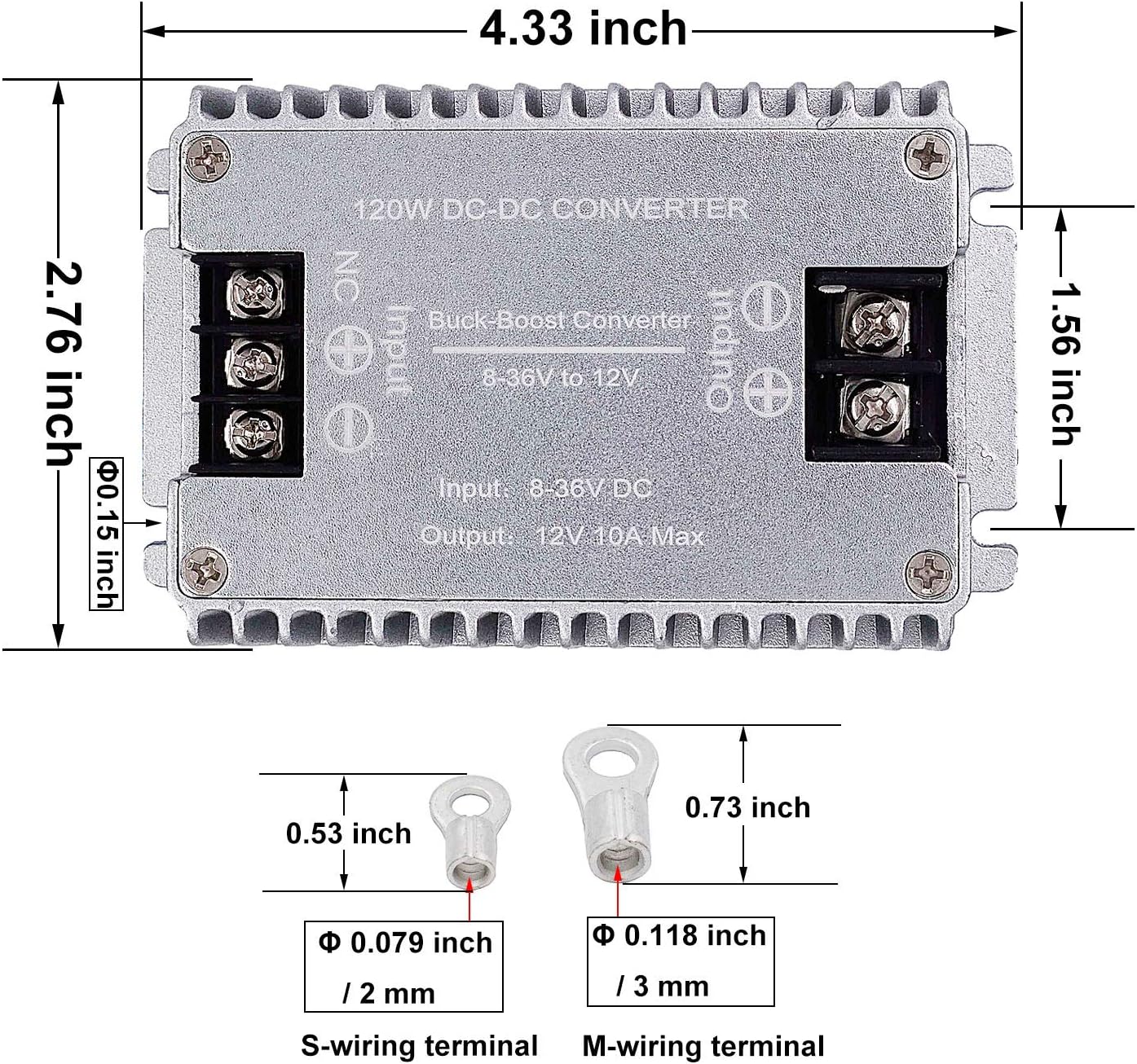

Features: - DC-DC 8-36V down / up to 12V 10A 120W voltage transformer - High reliability and conversion efficiency, wide input voltage range - Die-cast aluminum shell for achieving natural heat dissipation, waterproof, dustproof and shockproof - Built-in over-temperature , over-current, over-voltage, output short- circuit protection - Auto-recovery when device is back to normal operating - Compact in structure, easy to install Kindly Note: 1. Input voltage should be within DC 8V to 36V 2. Do not reverse the input and output interface 3. Give preference to stable DC power as the input power supply, or filter it with capacitor If you use the pulsed DC power provided by the generator Specifications: - Input Voltage: DC 12V / 24V - Input Range: DC 8V - 36V - Output Voltage: DC 12V - Output Current: 10A - Output Rated Power: 120W - Conversion Efficiency: > 96.8% - No-load Loss: <100mA - Ripple Wave: <100mV - Operating Temperature: -40℃ to +80℃ - Load Regulation: <2% - Voltage Regulation: <1% - Waterproof Rate: IP65 - Housing Material: Die-cast aluminum - Potting Material: Epoxy sealed - Size(L x W x H):110*70*23mm / 4.33*2.76*0.91 inch - Net Weight: 260g Package Includes: 1x DC to DC Buck-Boost Transformer 4x M-threaded wiring terminals
- 【Ultrathin DC-DC Buck-Boost Converter】It adopts premium quality electronic components and waterproof (IP65) aluminum housing. Widely used for golf cart, club car, motor, speaker, GPS, car display screen, LED strip light, air-conditioner, electric fan, solar energy, DVD and other devices that requires DC 12V voltage.
- 【Input Voltage】 DC 8V to 36V. A stable DC power is recommended as the input power supply, and the rated voltage supply should be within the voltage range of 8V to 36V.
- 【Output Voltage】DC 12V (Output Current: 10A). Please NOTE the output voltage/current/power is rated.
- 【Multiple Protections】Built-in over-temperature, over-current, over-voltage, output short- circuit protection to ensure your devices safely.
- 【Easy to DIY】Connect INPUT terminals to power source, OUTPUT terminals to your load device. The wiring diagram is printed on the back of buck-boost converter. Please don't power on before completing the circuit and connection, do not reverse the input and output interface.
| UPC | 722453988208 |
|---|---|
| ASIN | B082GD23W3 |
| Model | 722453988208 |
| Brand Name | Valefod |
| Item Weight | 260 Grams |
| Part Number | VA-0154-60 |
| Manufacturer | Valefod |
| Power Source | Corded Electric |
| Mounting Type | Chassis Mount |
| Current Rating | 10 Amps |
| Minimum Frequency | 50 Hz |
| Specification Met | CE, UL |
| Item Dimensions D x W x H | 0.91"D x 2.76"W x 0.91"H |
